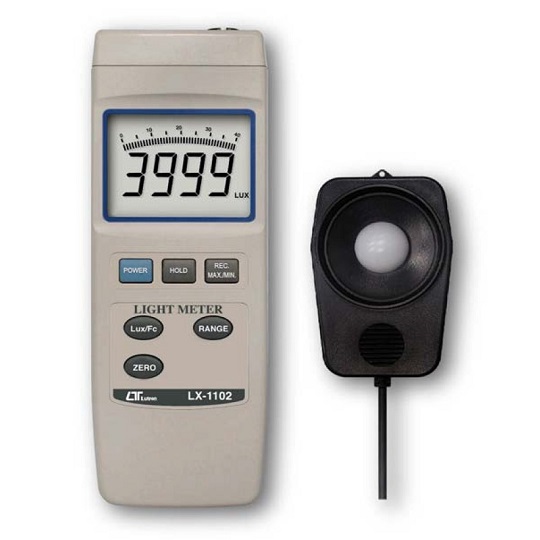

LIGHT METER

Lutron
SKU : LX-1102

FEATURES

  • 5 ranges :00/400.0/4,000/40,000/400,000 Lux.
  • Resolution :
    • Lux to 100 Lux.
    • Ft-cd to 10 Ft-cd.
  • Sensor used the exclusive photo diode & color correction filter, spectrum meet C.I.E. photopic.
  • Sensor cosine correction factor meet standard.
  • Separate Light Sensor allows user to measure the light at an optimum position.
  • Lux & Foot-candle unit selection.
  • Large LCD display with bar graph.
  • Water resistance front panel
  • Zero adjusting button.
  • Data hold and Peak hold.
  • Memory function with Recall. Auto
  • Auto power off or manual power off.
  • RS-232 computer data output.

FEATURES

  • 5 ranges :00/400.0/4,000/40,000/400,000 Lux.
  • Resolution :
    • Lux to 100 Lux.
    • Ft-cd to 10 Ft-cd.
  • Sensor used the exclusive photo diode & color correction filter, spectrum meet C.I.E. photopic.
  • Sensor cosine correction factor meet standard.
  • Separate Light Sensor allows user to measure the light at an optimum position.
  • Lux & Foot-candle unit selection.
  • Large LCD display with bar graph.
  • Water resistance front panel
  • Zero adjusting button.
  • Data hold and Peak hold.
  • Memory function with Recall. Auto
  • Auto power off or manual power off.
  • RS-232 computer data output.

GENERAL SPECIFICATIONS:

Display Large LCD display.
LCD size 52 x 38 mm, 4 digits. with bar graph indicator		 Operating Temperature 0 to 50 ℃ ( 32 to 122 ℉ ).
Measurement & ranges 5 ranges : 40.00/400.0 Lux, 4,000/40,000/400,000 Lux, Operating
Humidity		 Max. 80% RH.
Unit Lux, Foot-candle ( Ft-cd ). Power Supply DC 9V battery. 006P,
MN1604 ( PP3 ) or equivalent
Sensor The exclusive photo diode & color correction filter, spectrum meet C.I.E. Cosine correction factor meet standard. Power Consumption Approx. DC 8 mA.
Zero Adjustment External adjustment by pushing button. ( 40.00 Lux range only ) Weight 220 g/0.48 LB.
Peak Hold To hold the peak display Dimension Main instrument :
200 x 68 x 30 mm
( 7.9 x 2.7 x 1.2 inch ).
Sensor probe :
82 x 55 x 7 mm
( 3.2 x 2.2 x 0.3 inch ).
Data Hold To freeze the display value Accessories Included Instruction Manual. 1 PC.
Light Sensor with protection cover 1 PC.
Memory Save the max. & min. value with Recall. Optional Accessories RS232 cable, UPCB-02
Over and Under range Indication Over range Indicator : “- – – – “ Application Software, SW-U801-WIN
Under range Indicator : “_ _ _ _ “ Hard carrying case, CA–06
Power Off Auto or manual power off. Soft carrying case, CA–05A
Data Output RS-232 serial data output.



ELECTRICAL SPECIFICATIONS ( 2 3± 5 ℃ ):

Measurement Range In-range Display Resolution Accuracy
Lux 40.00 Lux 0 – 40.00 Lux 0.01 Lux ± ( 3% rdg + 0.5 % F.S.. )
400.0 Lux 36.0 – 400.0 Lux 0.1 Lux
4,000 Lux 360 – 4,000 Lux 1 Lux
40,000 Lux 3,600 – 40,000 Lux 10 Lux
400,000 Lux 10,000 – 400,000 Lux 100 Lux < 100,000 Lux :
± ( 3% rdg + 0.5 % F.S.. )
≧ 100,000 Lux : @ for reference only
Foot-candle ( Fc ) 4.000 Fc 0 – 3.720 Fc 0.001 Fc ± ( 3% rdg + 0.5 % F.S.. )
40.00 Fc 3.35 – 37.20 Fc 0.01 Fc
400.0 Fc 33.5 – 372.0 Fc 0.1 Fc
4,000 Fc 335 – 3,720 Fc 1 Fc
40,000 Fc 930 – 37,200 Fc 10 Fc < 9,300 Fc :
± ( 3% rdg + 0.5 % F.S.. )
≧ 9,300 Fc
@ for refereence only
Note : Accuracy tested by a standard parallel light tungsten lamp of 2856 K degree temperature

* Appearance and specifications listed in this brochure are subject to change without notice.

SKU: LX-1102 Categories: , ,
Brands

Lutron
Display Large LCD dispaly.
LCD size 52 x 38 mm, 4 digits. with bargraph indicator
Measurement & ranges 5 ranges : 40.00/400.0 Lux, 4,000/40,000/400,000 Lux,
Unit Lux, Foot-candle ( Ft-cd ).
Sensor The exclusive photo diode & color correction filter, spectrum meet C.I.E. Cosine correction factor meet standard.
Zero Adjustment External adjustment by pushing button. ( 40.00 Lux range only )
Peak Hold To hold the peak display
Data Hold To freeze the display value
Memory Save the max. & min. value with Recall.
Over and Under range Indication Over range Indicator : “- – – – “
Under range Indicator : “_ _ _ _ “
Power Off Auto or manaual power off.
Data Output RS-232 serial data output.
