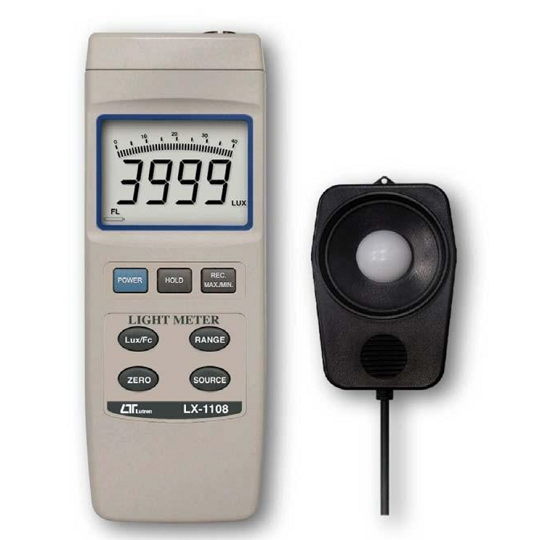

Light Meter
,

Light Meter

SKU : LX-1108

FEATURES

  •  5 ranges :40.00/400.0/4,000/40,000/400,000 Lux.
  •  Resolution :0.01 Lux to 100 Lux.
    0.01 Ft-cd to 10 Ft-cd.
  • Selection of lighting type ( Tungsten,Fluorescent, Sodium or Mercury ).
  • Sensor used the exclusive photo diode & color correction filter, spectrum meet C.I.E. photopic.

FEATURES

  •  5 ranges :40.00/400.0/4,000/40,000/400,000 Lux.
  •  Resolution :0.01 Lux to 100 Lux.
    0.01 Ft-cd to 10 Ft-cd.
  • Selection of lighting type ( Tungsten,Fluorescent, Sodium or Mercury ).
  • Sensor used the exclusive photo diode & color correction filter, spectrum meet C.I.E. photopic.
  • Sensor cosine correction factor meet standard.
  • Separate Light Sensor allows user to measure the light at an optimum position.
  • Lux & Foot-candle unit selection.
  • Large LCD display with bar graph.
  • Water resistance front panel
  • Zero adjusting button.
  • Data hold and Peak hold.
  • Memory function with Recall. Auto
  • Auto power off or manual power off.
  • RS-232 computer data output.
SKU: LX-1108 Categories: ,
GENERAL SPECIFICATIONS :
Display Large LCD dispaly.
LCD size 52 x 38 mm, 4 digits.
with bargraph indicator.
Measurement
& ranges		 40.00/400.0 Lux.
4,000/40,000/400,000 Lux.
Unit Lux, Foot-candle ( Ft-cd ).
Lighting Type
Selection		 Tungsten, Fluorescent,Sodium, Mercury lamp.
Sensor The exclusive photo diode & color correction filter, spectrum
meet C.I.E. Cosine correction factor meet standard.
Zero Adj. External adjustment by pushing button.
( 40.00 Lux range only )
Peak Hold To hold the peak display.
Data Hold To freeze the display value.
Memory Save the max. & min. value with Recall.
Power Off Auto or manaual power off.
Over and
Under range
Indication		 Over range Indicator : ” —— “
Under range Indicator : “_ _ _ _ “
Data Output  RS-232 serial data output.
Operating Temperature 0 to 50 ℃ ( 32 to 122 ℉ ).
Operating Humidity Max. 80% RH.
Power Supply DC 9V battery. 006P,MN1604 ( PP3 ) or equivalent.
Power Consumption Approx. DC 8 mA.
Weight 220 g/0.48 LB.
Dimension Main instrument :200 x 68 x 30 mm( 7.9 x 2.7 x 1.2 inch ).
Sensor probe :82 x 55 x 7 mm( 3.2 x 2.2 x 0.3 inch ).
Accessories
Included		 Instruction Manual… 1 PC.
Light Sensor with protection
cover ………………… 1 PC.
Optional
Accessories		 RS232 cable, UPCB-02
USB cable, USB-01
Application Software,SW-U801-WIN
Hard carryingt case, CA–06
Soft carryingt case, CA–05A



ELECTRICAL SPECIFICATIONS ( 2 3± 5 ℃ ):
Measurement  Range In-range Display Resolution Accuracy
Lux 40.00 Lux 0 – 40.00 Lux 0.01 Lux ± ( 3% rdg + 0.5 % F.S.. )
400.0 Lux 36.0 – 400.0 Lux 0.1 Lux
4,000 Lux 360 – 4,000 Lux 1 Lux
40,000 Lux 3,600 – 40,000 Lux 10 Lux
400,000 Lux 10,000 – 400,000 Lux 100 Lux < 100,000 Lux :
± ( 3% rdg + 0.5 % F.S.. )
≧ 100,000 Lux :
@ for refereence only
Foot-candle
( Fc )		 4.000 Fc 0 – 3.720 Fc 0.001 Fc ± ( 3% rdg + 0.5 % F.S.. )
40.00 Fc 3.35 – 37.20 Fc 0.01 Fc
400.0 Fc 33.5 – 372.0 Fc 0.1 Fc
4,000 Fc 335 – 3,720 Fc 1 Fc
40,000 Fc 930 – 37,200 Fc 10 Fc < 9,300 Fc :
± ( 3% rdg + 0.5 % F.S.. )
≧ 9,300 Fc
@ for refereence only
