LANG STEREOTEST II R

Lang-Stereotest® Switzerland

SKU : LANG-II-R

Intended use and main features
Lang-Stereotests are orthoptic products for binocular diagnostics and screening of disorders of stereoscopic vision in adults and children, for medical professionals. The Lang-Stereotest is used for rapid screening of stereopsis vision in all age groups from 6 months of age. Since loss of stereopsis is considered a key symptom of amblyopia (lazy eye), failure to recognise random dot stereograms may indicate a previously undetected, treatable disorder of binocularity (e.g., microstrabismus, anisometropia). Lang-Stereotest  have proven to be highly specific and highly sensitive for stereo vision. Thanks to the unique combination of random dots and a lenticular lens, no special glasses are needed, and the eye movements of the subject may be easily observed.

The test exists in the versions Lang-Stereotest I and II, and the revised versions I-R and II-R.

Intended use and main features
Lang-Stereotests are orthoptic products for binocular diagnostics and screening of disorders of stereoscopic vision in adults and children, for medical professionals. The Lang-Stereotest is used for rapid screening of stereopsis vision in all age groups from 6 months of age. Since loss of stereopsis is considered a key symptom of amblyopia (lazy eye), failure to recognise random dot stereograms may indicate a previously undetected, treatable disorder of binocularity (e.g., microstrabismus, anisometropia). Lang-Stereotest have proven to be highly specific and highly sensitive for stereo vision. Thanks to the unique combination of random dots and a lenticular lens, no special glasses are needed, and the eye movements of the subject may be easily observed.

The test exists in the versions Lang-Stereotest I and II, and the revised versions I-R and II-R.

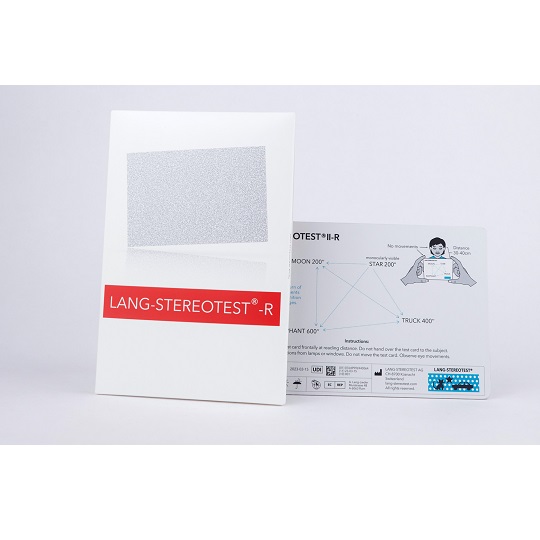

The Lang-Stereotest II-R is a revised version of the Lang-Stereotest II. This revised version has improved optical and print quality over the earlier version and has no monocular clues when used correctly. Also new is a brief instruction in English on the back of the test card, with schematic illustration for correct use, mirror-image arrangement of stereo objects and typical pattern of eye movements in stereopositive subjects.

The Lang-Stereotest  II-R is a supplement to the proven Lang-Stereotest I-R (star, cat, car) and is also used to test binocular vision according to the same principle. In addition to three figures that are only visible binocularly (crescent moon, car and elephant), there is also a contoured star that can be seen with one eye. Many users had requested another stereoscopic examination card as an alternative to the Lang-Stereotest I-R. In the Lang-Stereotest II-R, the random dots are smaller and less dense. The disparities are chosen to be slightly finer, 200 arc seconds for the moon, 400″ for the car and 600″ for the elephant, valid for an observing distance of 40 cm (10-15 inches). The monocularly visible star with a disparity of 200″ is said to improve diagnostics in young children by increasing attention and reaction. In addition, subjects without binocular vision remain less disappointed.

Examination & Application

Examination (see also diagram on the back of the test)

  • Make sure the subject is wearing his/her corrective glasses or reading glasses (if necessary).
  • Avoid reflections from lamps or windows.
  • Do not hand the test card to the subject. The latter may find the optimal viewing position by slight head movements.
  • Hold the test card vertically at a reading distance of 30-40cm.
  • Avoid moving or wiggling the test card during the test.
  • Ask, “Can you see anything?” Refrain from giving help, asking suggestive questions, or mentioning the 3D objects.
  • Observe the subject’s eye movements

Refining the examination

  • If the subject already knows the 3D objects, use the test card upside down or show two tests, one in horizontal and one in vertical position where the 3D objects disappear.
  • Switch to the other version of the Lang-Stereotest  when retesting or use the Lang-Stereopad for more in-depth testing (for the preferential looking method or the stereo threshold).
  • To confirm a positive result, have the subject close one eye while looking at the 3D objects. The test figures must disappear during this process.

Results of Screening

  • Positive: Correctly naming or pointing all test figures. The eye movement pattern describes a triangle in the Lang-Stereotest I-R and a quadrilateral in the Lang-Stereotest II-R. -> No further examination required.
  • Negative: No 3D object can be detected. Eyes are scanning the test plate and then shift away from it. -> Refer patient to orthoptic eye specialist for further examination of stereoscopic vision and visual acuity.
  • Doubtful: One or more objects may be localized but are not being identified correctly. Eyes are scanning the test plate. -> Repeat test after break, without giving suggestions. -> Refer patient to orthoptic eye specialist for further examination of stereoscopic vision and visual acuity.

Common mistakes and how to avoid them

  • The test must be performed by an experienced examiner, i.e. self-testing is not reliable because it can give false positive results.
  • The test card must not be moved or tilted during the examination. The patient must look at the card calmly and wait for the test figures to appear.
  • The recognition takes some time. It is important to perform the examination without putting pressure on the patient. No hints should be given, certainly not the names of the test figures.

Important note
Lang-Stereotests are not a substitute for a visual acuity test or a specialist examination. A positive screening result only indicates the presence of random dot stereoscopic vision (global stereopsis) but does not exclude other visual disorders. A negative screening result alone does not prove a visual disorder. Users must therefore be well acquainted with the test. The revised test versions (-R) have improved print and image quality compared to the previous versions Lang-Stereotest I and Lang-Stereotest II. On the back of the test there are brief instructions and a schematic drawing for correct use.

Technical specifications

3D Objects and Disparities of Lang-Stereotest II-R

  • ELEPHANT 600’’
  • TRUCK 400’’
  • MOON 200’’
  • STAR 200’’ (2D, always visible)
  • Reading distance: 30-40 cm (10-15 Inches)

Specifications:

  • REF 104,
  • CE mark, Medical Device Class I, compliant with Regulation (EU) 2017/745/EU
  • Format: 145 x 95 mm | Thickness 1,5 mm
  • (5,71 x 3,75 Inches | 0,08 Inches)
  • Weight without cover: 20 g
  • Supplied with envelope bag
  • Operating instructions are in the envelope

Manufactured in Switzerland, developed by Lang-Stereotest AG. All rights reserved.

SKU: LANG-II-R Categories: ,
Brands

Lang-Stereotest® Switzerland

Disparity of objects ELEPHANT 600’’
TRUCK 400’’
MOON 200’’
STAR 200’’ (2D, always visible)
Target user group Paediatrician, Paediatric ophthalmologist, Orthoptist, Optometrist, Optician
Main purpose Prevention or early detection of amblyopia.
Reading distance 30-40 cm (10-15 inches)
