Examination Tools
SKU : CCQ-800

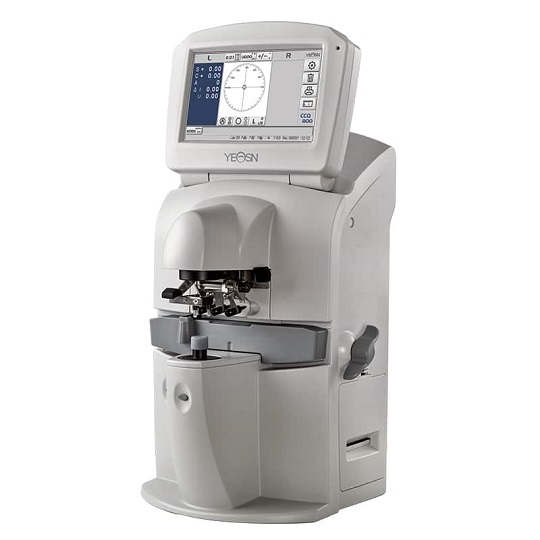

Lensmeter Auto
SKU : CCQ-800
Auto Identification of Lens Type
Support auto judgment of lens type and identification of single-vision and progressive lens.
Features:
- Bigger TFT touch screen colour LCD 7″,simple and easy operation technology.
- UV Lens can be measured.
- PD, PH can be measured.
- Contact Lens can be measured.
- Prism Lens can be measured.
- Can Check Distortion (Scratch) on Lens.
- Easy measurement of Progressive Lens.
- Auto Print with High Speed Thermal printing.
- Hartman testing method.
- Green LED light source.
- Software based Advanced & third generation technology.
- Diameter of Lens can be measured.
- LCD colour can be changeable.
- (4 different colours available in LCD Screen).
- Auto Power Saving mode.
- USB connectivity available.
- Connection through power adapter.
| Brands | YEOSN |
|---|
TECHNICAL SPECIFICATIONS :
| Measurement Range | Sphere: (S)-25-250 (0.01/0.06/0.12/0.250 Step) |
| Cylinder: (C) 0-100 (0.01/0.06/0.12/0.25 DStep) | |
| Axis: (A) 0-180″ (1 increments): | |
| Spherical power(contact lens): | -20 m-120 m-1 |
| ADD power | -9.99 m-19.99 m-1 |
| Prism power: | 0-15 (horizontal direction) |
| 0-15 (vertical direction) | |
| 0.01 increments 0.01 cm/m | |
| Applicable lenses: | ф10mm – 490 mm dia; ≤20 mm center thickness |
| Applicable frame leg length: | 0-158mm |
| PD measurement: | PD-42 mm-82mm |
| UV Transmittance: | Qualitative measurement |
| Power source: | DC 12V, 45VA |
| Power adapter: | Input AC 110V-240V, 50Hz-60Hz Output DC 12V, 45VA |
| Measurement: | 235mm(length)*245mm(width)*487mm(height) |
| Weight: | 6kg |
| Printer | Thermal Printer |
| Color LCD (Touch Screen) | 7 inch TFT Touch Screen |
| Power Save | Off, 10/15/30/60 minutes (selectable) |
